ProMAXX Tool® IMR200DGE Intake Manifold Repair – Dodge Ram ProMaster 3.6L (2014–2025)

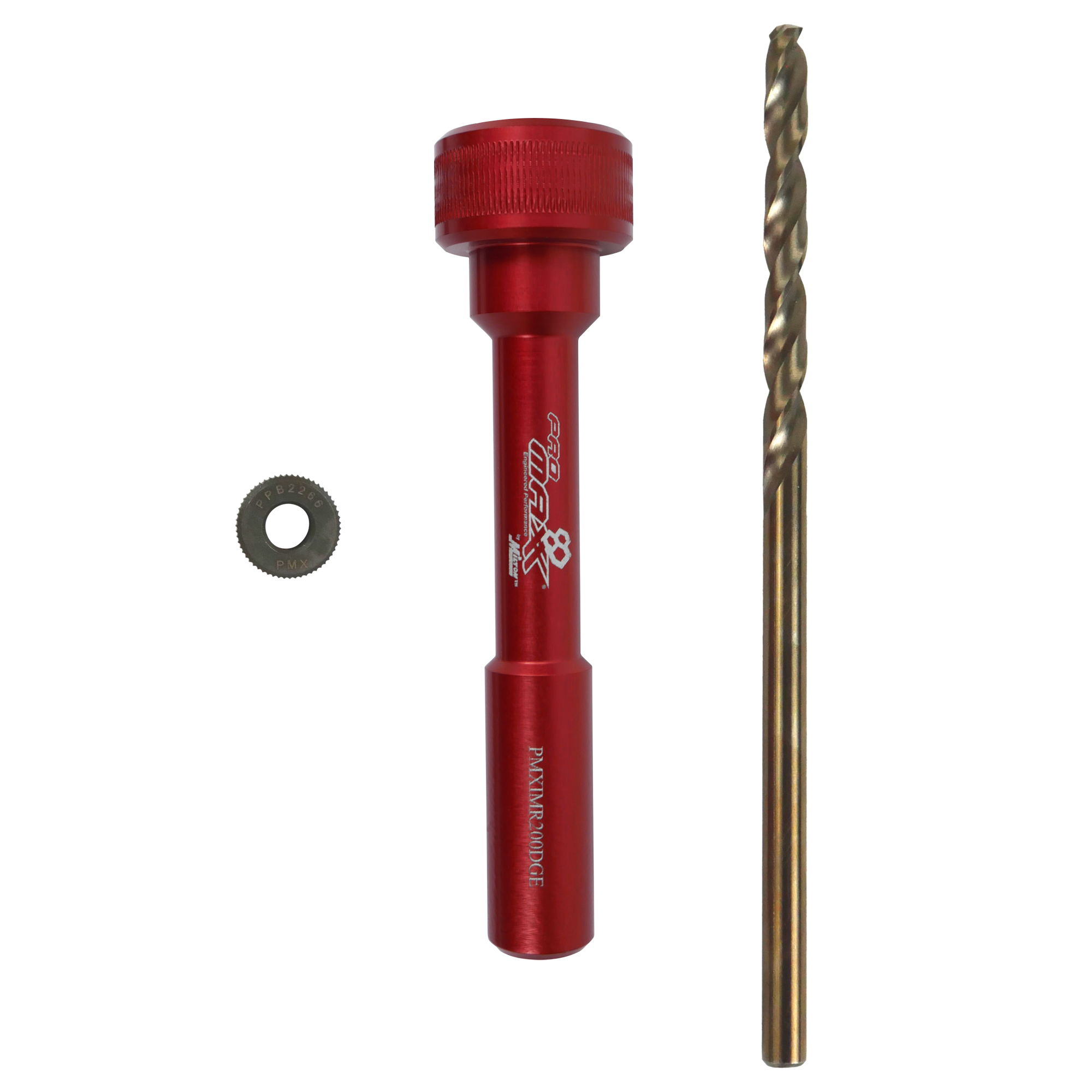

The IMR200DGE is a compact, round drill jig engineered for the Dodge Ram ProMaster 1500/2500/3500 with the 3.6L V6.
It lets technicians safely remove the head of rounded or damaged intake fasteners—common after water accumulation on the
manifold—so the intake can be removed cleanly for tune-ups, oil filter housing, or oil cooler replacement. Reduce downtime,
protect components, and finish the job faster.
Key Features & Benefits
- Vehicle-Specific Drill Jig – Round ProPlate targets Dodge ProMaster 3.6L fasteners for accurate, repeatable cuts.
- Removes Rounded Washer-Head Fasteners – Cleanly removes the bolt head to free the intake manifold without collateral damage.
- Speeds Common Services – Streamlines intake removal for tune-ups, oil filter housing, and oil cooler repairs.
- Compact, Shop-Ready Design – Low-profile jig improves access around the intake manifold in tight bays.
- Pro-Grade Components – Precision machining helps prevent bit walk-off and maintains tool alignment.
Built for ProMaster Intake Manifold Challenges
With more than half a million Dodge ProMaster vans on the road, water accumulation on the intake manifold is a
frequent headache. During intake removal for routine services, the flanged washer-head fasteners often round off, turning
a straightforward repair into an all-day job. The IMR200DGE Jig solves this by guiding the cut precisely at the bolt head,
allowing the manifold to lift off so the remaining fastener shank can be addressed safely.
Why It’s Better
Generic drilling is risky—bits skate, bores wander, and components get damaged. The purpose-built IMR200DGE aligns the
cut, keeping the drill centered and square. This reduces rework, protects mating surfaces, and helps technicians move from
“stuck” to “done” in minutes.
Use Cases
Ideal for dealership service bays, independent shops, and fleet maintenance teams servicing Dodge Ram ProMaster 1500/2500/3500
3.6L vans (2014–2025) that require intake removal for tune-ups, oil filter housing, and oil cooler replacement.
Specifications
Product Type
Intake Manifold Repair Drill Jig (Round ProPlate)
Platforms
Dodge Ram ProMaster 1500/2500/3500
Engine
3.6L V6 Gasoline
Model Years
2014–2025
Primary Function
Removes the head of rounded/damaged flanged washer-head fasteners to free intake manifold
Typical Services
Tune-ups, oil filter housing service, oil cooler replacement
Design
Compact, low-profile round jig for controlled drilling and alignment
Users
Professional technicians, fleet service teams, advanced DIY

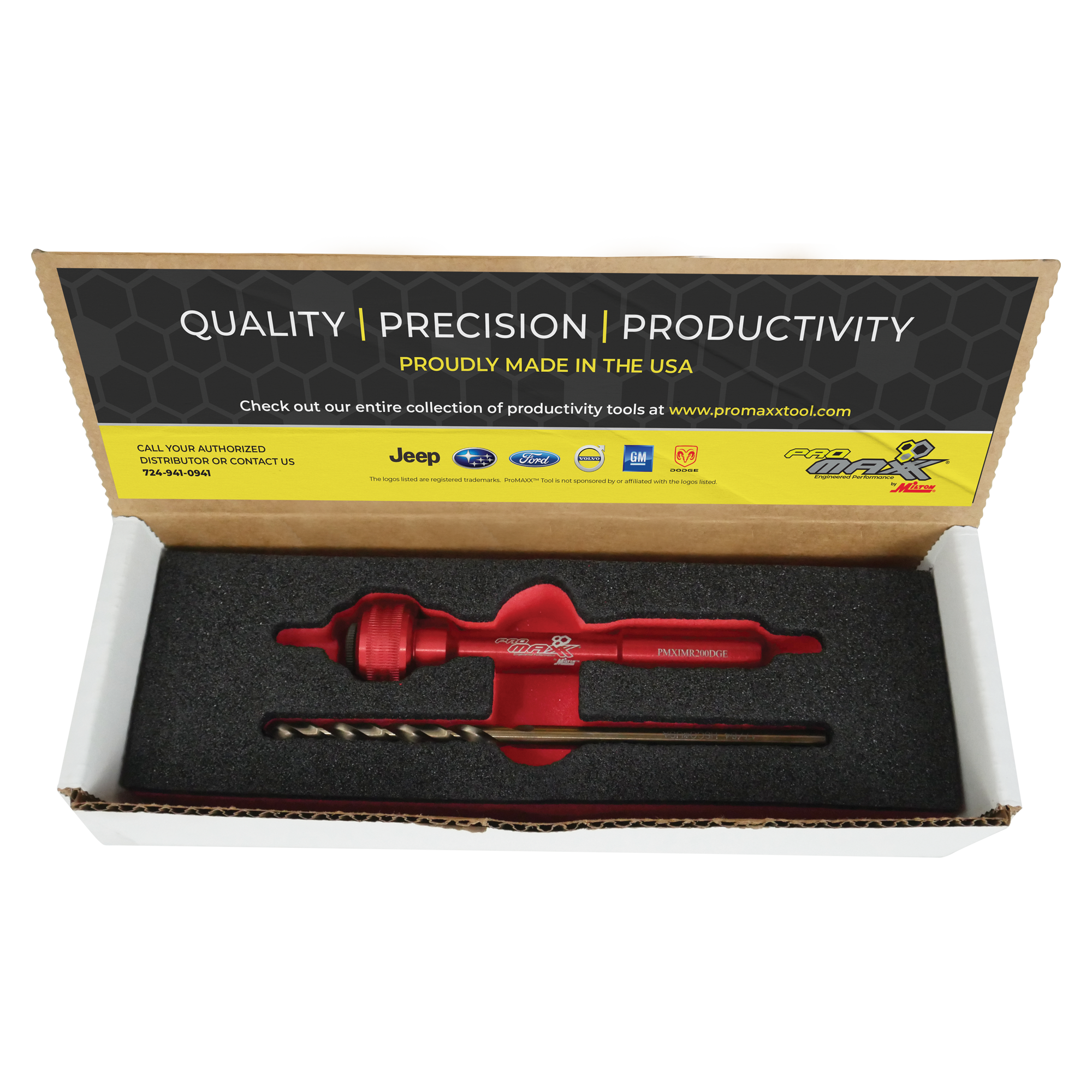

Choose Your Kit: ProPlate (IMR200DGE) vs Full Kit (IMR200DGEPRO)
| Component / Feature |
IMR200DGE (ProPlate) |
IMR200DGEPRO (Full Kit) |
| Round Drill Jig (ProPlate) |
Included (IMR200DGE ProPlate) |
Included |
| Guide Bushings / Alignment |
— |
Included (application-matched) |
| Pro-grade Drill / Cut Accessories |
— |
Included (kit-optimized) |
| Hardware & Protection |
— |
Included (fasteners, protection aids) |
| Case / Organization |
— |
Included (shop-ready case) |
| Best For |
Shops with existing tooling that need the dedicated jig only |
Teams wanting a complete, ready-to-deploy solution |
Why It’s Best vs Generic Drilling
- Centered, Controlled Cuts – Prevents drill walk-off and unintended surface damage.
- Faster Intake Removal – Saves time spent fighting rounded washer-head fasteners.
- Cleaner Results – Protects mating surfaces and reduces rework.
