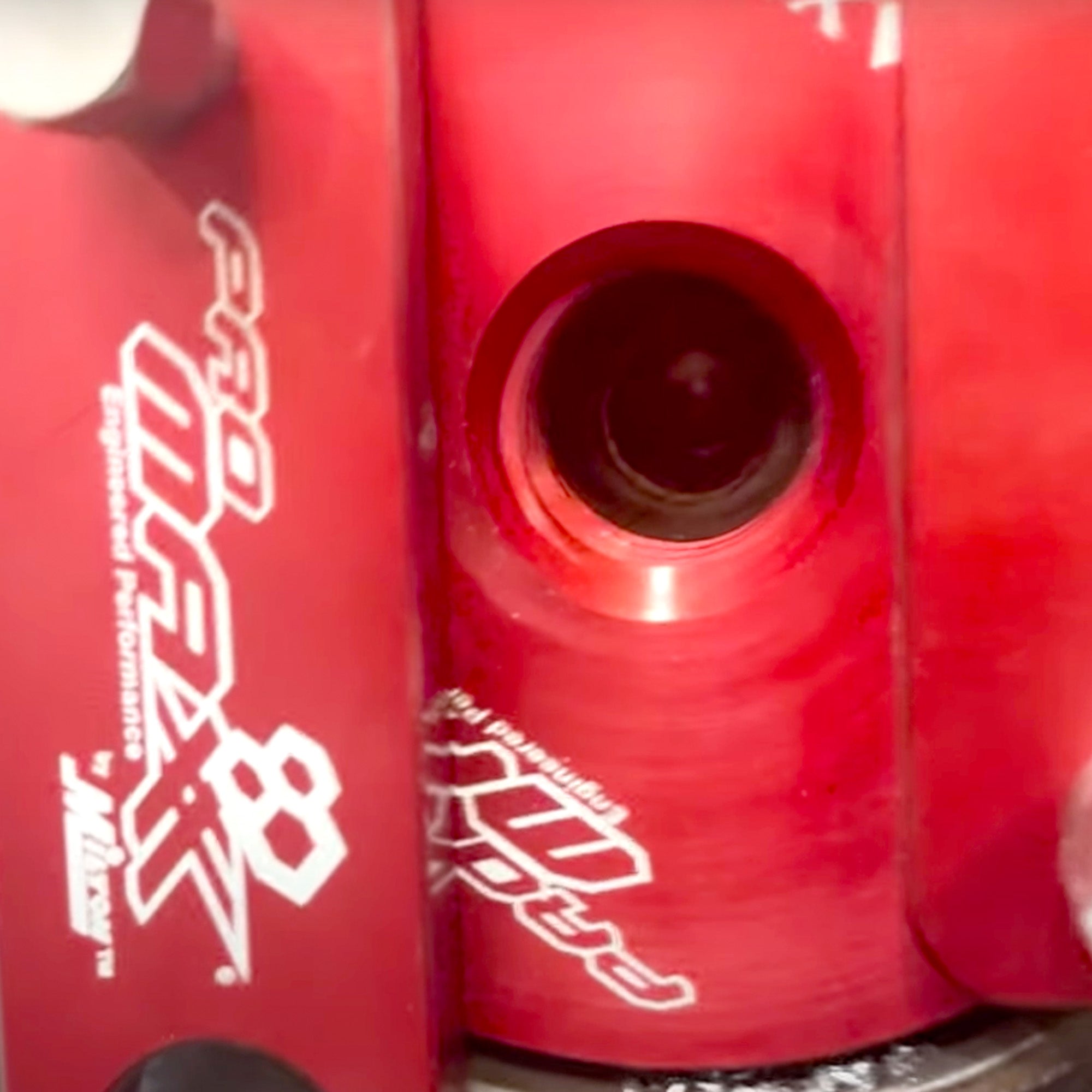

Ford-Axel-Bolt-Hole
Tapping Ford F-150 Rear Axle Repair Kit
SAVE 0%
FordF-150AxleRepairToolKit-PMXFRA500PRO
Mounting Ford F-150 Rear Axle Repair Kit
Drilling Ford F-150 Rear Axle Repair Kit
Ford-Axel-Bolt-Hole
Tapping Ford F-150 Rear Axle Repair Kit

Ford F-150 Rear Axle Repair Kit

ProMAXX Tool

Part #: PMXFRA500PRO
Ford F-150 Rear Axle Repair Kit For 2021–2023 Trucks with Trailer Tow Max Duty Package Repair ProKit Includes:
  • PMXFRA500 - Ford Axle Tool Disk
  • PMXFRA500MNT-L - PMXFRA500 Mounting Arms - Left side
  • PMXFRA500MNT-R - PMXFRA500 Mounting Arm - Right side
  • PMXPPB5125 - ProBushing SML (500 Series)
  • PMXPPB5420 - ProBushing - XXL (500 Series)
  • PMXPPB5485 - ProBushing - TAP (500 Series)
  • PMXPPF008500-125D ProFasteners
  • PMXPPT0120125-FRA - ProTap Prem Precision Tooling
  • PMXSPJC125 - PProDrill Gold PrecTooling -SM
  • PMXSSSC420 - 27/64" ProDrill Gold Tooling

(Kit contents subject to change)

Fast, on-vehicle repair kit for Ford F-150 rear axle bolt failures on 2021–2023 models with Trailer Tow Max Duty Package.

  • Repairs axle bolt without axle removal – saves hours
  • Adjustable guide plate fits over broken bolt for accuracy
  • Hardened bushings ensure perfect drill alignment
  • USA-made drill bits with 135° split-point for fast cuts
  • ProTap restores OEM threads for secure bolt installation

PRODUCT DETAILS

FREE 24/7 Customer Support: 724-941-0941

Need it fast? Take advantage of our Saturday FedEx Residential Delivery & FREE Shipping on UPS/Fed Ex Ground Orders Over $300!

$349.95
$399.95
Save: 13%

Quantity

Continue to Your Cart
Continue to Your Cart

Ford F-150 Rear Axle Repair Kit

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Kit Lets Techs Quickly Fix Ford F-150 Rear Axle Bolt

EcoBoost™ Fuel Injector Puller Drill Out Injector
Mount to Hub
EcoBoost™ Fuel Injector Puller Drill Out Injector
Drill Out Bolt
EcoBoost™ Fuel Injector Puller Attach Adapter
Dead-Center Drilling
EcoBoost™ Fuel Injector Puller Attach Adapter
Tap Threads

Ford F-150 Rear Axle Repair Kit – 2021–2023 Trucks with Trailer Tow Max Duty Package

Fast, On-Vehicle Fix for Rear Axle Bolt Failures

The ProMAXX Tool Ford F-150 Rear Axle Repair Kit (PMXFRA500PRO) delivers a fast, precise solution for broken rear axle bolts on 2021–2023 Ford F-150s with the Trailer Tow Max Duty Package and 9.75" Heavy Duty Axle. Avoid axle removal and repair directly on the vehicle in as little as 15 minutes.

Why Do Ford F-150 Rear Axle Bolts Fail?

Axle hub spline damage can lead to vehicle rollaway or loss of drive power—even in Park. This repair kit prevents costly downtime and eliminates the need for full axle replacement.

Key Features & Benefits

  • Quick, On-Vehicle Repair: Complete repairs without removing the axle—saves up to 5x the labor time compared to axle replacement.
  • Adjustable Guide Plate: Heavy-duty disk mounts directly to the wheel hub and aligns perfectly over the broken bolt for stability.
  • Precision Bushings: Hardened steel bushings align drill bits dead-center, ensuring accurate and repeatable results on every job.
  • High-Quality Tooling: USA-made, machine-shop-grade drill bits with 135° split-point tips for clean, fast cuts through hard materials.
  • Thread Restoration Tap: PMXPPT0120125-FRA bottoming tap fully restores threads to OEM specs, guided by bushings to prevent misalignment.
How Does the Ford F-150 Rear Axle Repair Kit Work?

The kit includes hardened bushings, alignment guides, premium drill bits, and a precision-ground tap to cleanly remove broken bolts and restore threads. Once complete, the new bolt installs easily with consistent torque and perfect fit.


What Are the Axle Repair Kit's Benefits to Your Shop?
  • Reduce repair times by hours—boost technician efficiency and shop profitability
  • Minimize comebacks with precision tooling and thread restoration
  • Impress customers with fast turnaround and reliable repairs

Save Time...No Need to Remove & Replace The Axle. Make The Repair Right on The Truck

Compatible Vehicles

Designed specifically for 2021–2023 Ford F-150 Trucks equipped with the Trailer Tow Max Duty Package and 9.75-inch rear axle.

Frequently Asked Questions (FAQ)

What does the Ford F-150 Rear Axle Repair Kit fix?

    The kit repairs broken rear axle hub bolts on 2021–2023 Ford F-150 trucks with the Trailer Tow Max Duty Package and 9.75-inch heavy-duty axle, preventing vehicle rollaway and restoring drive power.


Can this repair be done without removing the axle?

    Yes, the repair is completed entirely on-vehicle, eliminating the need to remove or replace the axle. This saves significant labor time and shop costs.


How long does the repair take?

    The repair can typically be completed in about 15 minutes—up to five times faster than axle replacement procedures.


What makes the kit accurate and reliable?

    Hardened steel bushings and a precision-fit guide plate ensure that drill bits align perfectly, while the included ProTap restores factory-quality threads for a secure bolt installation.


Is the tooling included in the kit high quality?

    Yes. The machine-shop-grade drill bits are USA-made, ground to a 135° split point, and engineered for precision drilling across a variety of tough materials.
